Multipurpose Adapter Card. The New Batch!

1 - 4 cards £3.00 each.
5 - 9 cards £2.75 each
10 or more cards £2.50 each

UK postage and packing £2 on all orders.
Non UK pay actual postage cost.

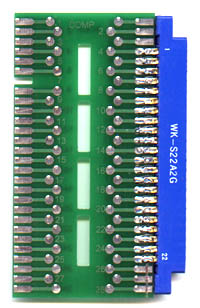

The idea of this device is to aid you in constructing adapter to play non jamma arcade games on a jamma or any other standard system. It's very simple...

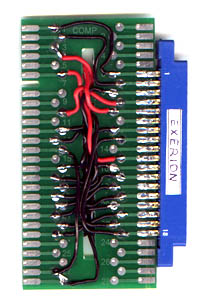

Solder an appropriate sized edge connector on one edge (making sure the jamma key notch is on the other side).	With the aid of the correct pinouts solder wires from the jamma side to the appropriate pad on the non jamma side.	The result is a more compact, reliable, and tidier than usual jamma loom.

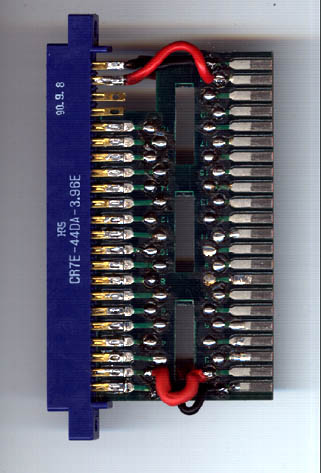

And it doesn't have to stop at jamma - here's a partially constructed Lunar Lander to Asteroids adapter:



Spec: The adapter card has 2 jamma edge connectors. A jamma edge connector is 2 sided with 28 pins on each side. The KEY is on pin 7 and the pitch is 0.156". The length along the connector is 114.15mm and the breadth of this card is 52mm.

Don't Want to make 'em yourself?

I can make adapter cards up for you. The cost depends on which game in particular you want me to convert. E-mail me the name of the game and I'll quote a price. They aren't cheap mind cos I HATE making them. Much better to buy the parts and D.I.Y.
